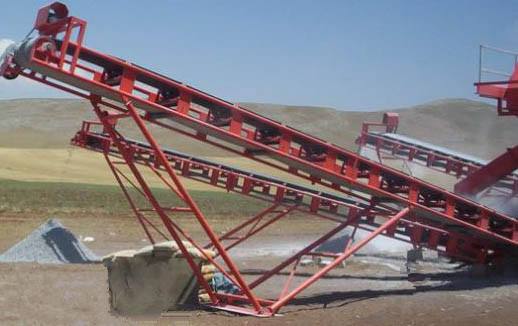

Conveyor belt

A conveyor is a material handling machine that continuously transports materials on a certain line, also known as a continuous conveyor. The conveyor can be used for horizontal and inclined conveyors, or it can form a space transmission line, and the transmission line is generally fixed. The conveyor has a large conveying capacity and a long transportation distance, and can also complete several process operations simultaneously in the conveying process, so the application is very extensive.

It can be transported in a single unit or in multiple units or in a horizontal or inclined conveying system with other conveying equipment to meet the needs of different layouts.
The belt conveyor is also called belt conveyor. The belt conveyor produced by our company has the advantages of large conveying capacity, simple structure, convenient maintenance and standardization of components. It is widely used in mining, metallurgy, coal and other departments to transport loose materials. Or a piece of articles, according to the requirements of the transportation process, can be transported in a single unit, or multiple units can be combined with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layout types of working lines.
Conveyor performance advantage

Continuous automatic feeding, low labor intensity
The belt conveyor produced by our company can transport various materials economically and effectively. In industrial production, the belt conveyor can be used as a continuous production link between production machinery and equipment to achieve continuity and automation of production links. Productivity and labor intensity.

Large conveying capacity, wide application and various models
The conveyor belt moves according to the friction transmission principle, and has the advantages of large conveying capacity, long conveying distance, stable transportation, no relative movement of material and conveyor belt, low noise, simple structure, convenient maintenance, low energy consumption, standardization of components, etc. It is used in the transportation and production lines of mining, metallurgy, chemical, foundry, building materials and other industries as well as hydropower station construction sites and ports to transport loose materials or finished articles.

Can be single operation, multi-machine joint operation, can adapt to a variety of work forms
According to the requirements of the conveying process, it can be transported by a single machine, or it can be composed of multiple belt conveyors or with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layouts. The belt conveyor can be used in the ambient temperature range of -20 ° C to +40 ° C, and the temperature of the conveyed material is below 50 ° C.

Parameters

width (mm)	lenght(m) power(kw)			speed (m/s)	capacity(t/h)
400	≤10 3	12-15 3-4	15-30 4-7.5	1.25-2.0	30-60
500	≤10 3	12-15 4-5.5	15-30 5.5-7.5	1.25-2.0	40-80
650	≤10 4	12-15 7.5	15-30 7.5-11	1.25-2.0	80-120
800	≤10 4	12-15 7.5	15-30 7.5-15	1.25-2.0	120-200
1000	≤10 5.5	10-20 7.5-11	20-40 11-22	1.25-2.0	200-320
1200	≤10 7.5	10-20 7.5-15	20-40 15-30	1.25-2.0	290-480
1400	≤10 11	10-20 15-22	20-40 22-45	1.25-2.0	400-680
1600	≤10 15	10-20 22-30	20-50 30-75	1.25-2.0	600-1080
1800	≤10 18.5	10-20 30-45	20-50 45-110	1.0-2.0	800-1500
2000	≤10 22	10-20 45-55	20-50 55-132	1.0-2.0	1000-2000
2400	≤10 30	10-20 55-75	20-50 75-185	1.0-2.0	1500-3000

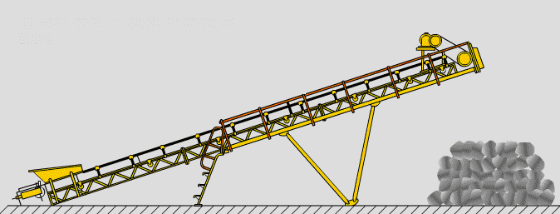

Principle
