Mobile impact crusher

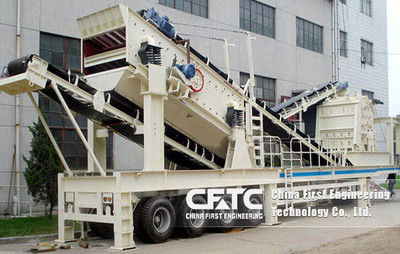

The structure of the  mobile impact crusher station:
Mobile impact crusher offers maximum set-up flexibility, from course to fine crushing, and is cost efficient.All parts of the impact-type mobile crushing plant are onboard, including: solid frame, impact crusher, feeder, vibrating screen, conveyor belt, motor and control box.

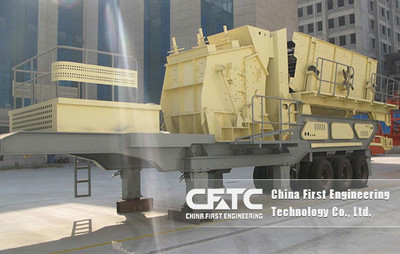

Mobile impact crusher structure:
All components of the Mobile impact crusher plant are fully on-board, including: rugged frame, impact crusher, feeder, vibrating screen, conveyor belt, motor and control box.

The features and technical advantages of mobile impact crusher :
1. HC series high performance crusher;
2. Vehicle feeder, vibrating screen and belt conveyor;
3. Traction steering shaft for easy road transportation;
4, on-board installation support, equipment installation on site is fast and convenient;
5. Integrated installation of motor and control box;
6, good mobility; compact structure, easy to use;
7, stable performance, easy maintenance; flexible configuration;
8. Save costs and reduce costs; Mobile impact crusher use and scope of use:
1. It is widely used in mines, recycling of coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites.
2. Treatment of topsoil and other materials; separation of viscous concrete aggregates; construction and blasting industry; screening after crushing; quarrying industry.
3. Artificial sand making of river pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, and stone chips.

Parameters

Model	Specification (mm)	Feed opening (mm)	Max. feeding size (mm)	Capacity (tph)	Power (kW)	Weight (t)
PF-1007	Φ1000×700	400X730	250	20-70	37-55	9
PF-1010	Φ1000X1050	400X1080	300	50-90	55-75	15
PF-1210	Φ1250X105	400X1080	300	70-130	110	17
PF-1214	Φ1250X1400	400X1430	300	100-180	132	22
PF-1315	Φ1320X1500	860X1520	350	130-250	200	26
PF-1520	Φ1500X2000	960X2020	700	300-500	400-440	45
PF-1820	Φ1800X2000	1600X2020	700	500-700	630-710	65

Principle

mobile impact crusher works:
The material is evenly conveyed into the crusher through the feeder, and after the preliminary crushing of the impact crusher, the closed circuit system is formed by the circular vibrating screen to realize the cyclic crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The counter-moving mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
